Backed by our 20 year structural guarantee*

The base is manufactured from mild steel sheet with RHS cross members and pressed ribs for additional strength. The main frame work is manufactured from rolled hollow section, while the back, sides and door panels are pressed from mild steel sheet corrugated where required. The roof is fitted with lifting eyes and fully welded around perimeter.

One end of the unit is fitted with lockable, sliding doors giving access to the drum/IBC store area, whilst the shelved walk-in store is accessed via a hinged door on the side of the unit. The internal divide between the two areas is an open framework and the entire unit is protected by a fully seam welded sump which fully complies with all the current UK regulations relating to sump capacities. The sumps in the walk-in section are covered by galvanised steel grid mesh with the drum/IBC storage areas covered with steel sump channels and placed directly onto a steel support frame. The drum/IBC storage can be fitted with grid mesh if requested. The underside of the unit is fitted with plinths to eliminate ground contact and reduce the risk of corrosion, prior to painting the unit is fully shot blasted to provide a clean and keyed surface.

This model can hold up to 16 x 205ltr drums or 4 x 1000ltr IBC’s across two levels and will accommodate standard 1200mm x 1200mm, 1200mm x 1000mm and 1200mm x 800mm pallets, plus the walk-in area which contains shelving for small containers.

*Full details available on request

This image shows the unit fitted with the chargeable option; galvanised steel grid mesh

 Chargeable Options:

• Air vents
• Full dividing wall between the two compartments

Please notify us at the time of ordering if you require any of these options.

This unit will be delivered by an HGV, possibly articulated therefore please ensure that a vehicle of this type can access your premises before ordering and advise us accordingly.

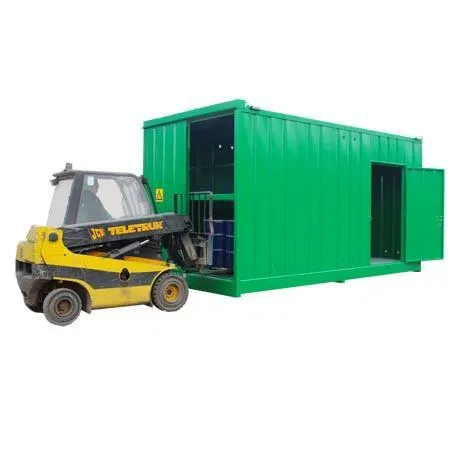

You will require an appropriate size/capacity fork lift truck to offload this item from the delivery vehicle. Our standard delivery doesn’t include any offloading.

The unit must be positioned on a solid level surface, ideally concrete of circa 150mm in depth and 100mm bigger overall than the unit. The purpose of this is to ensure the unit does not settle unevenly when loaded.

FLT = Fork Lift Truck
