Please note that the soft close mechanism is fixed on the track, between the first and second holes, and cannot be moved.

To ensure proper functionality, please choose a track length that is twice the width of the door panel. Avoid using an overlength track for smaller door panels, as it may render the soft close mechanism ineffective. For example, if the door panel's width is 40 inches, please use a 6.6ft track, not an 8ft track.

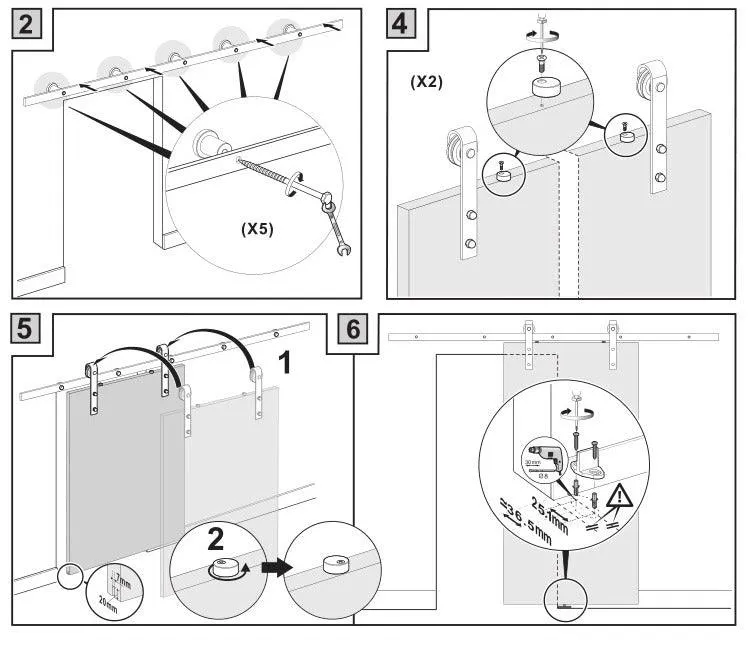

Ensure that there is a minimum height of 150mm (6 inches) from the top of the door to the top of the roller for installation.

The gap between the door and the wall is 16mm (16/25 inches) based on a door thickness of 40mm (1 4/7 inches).

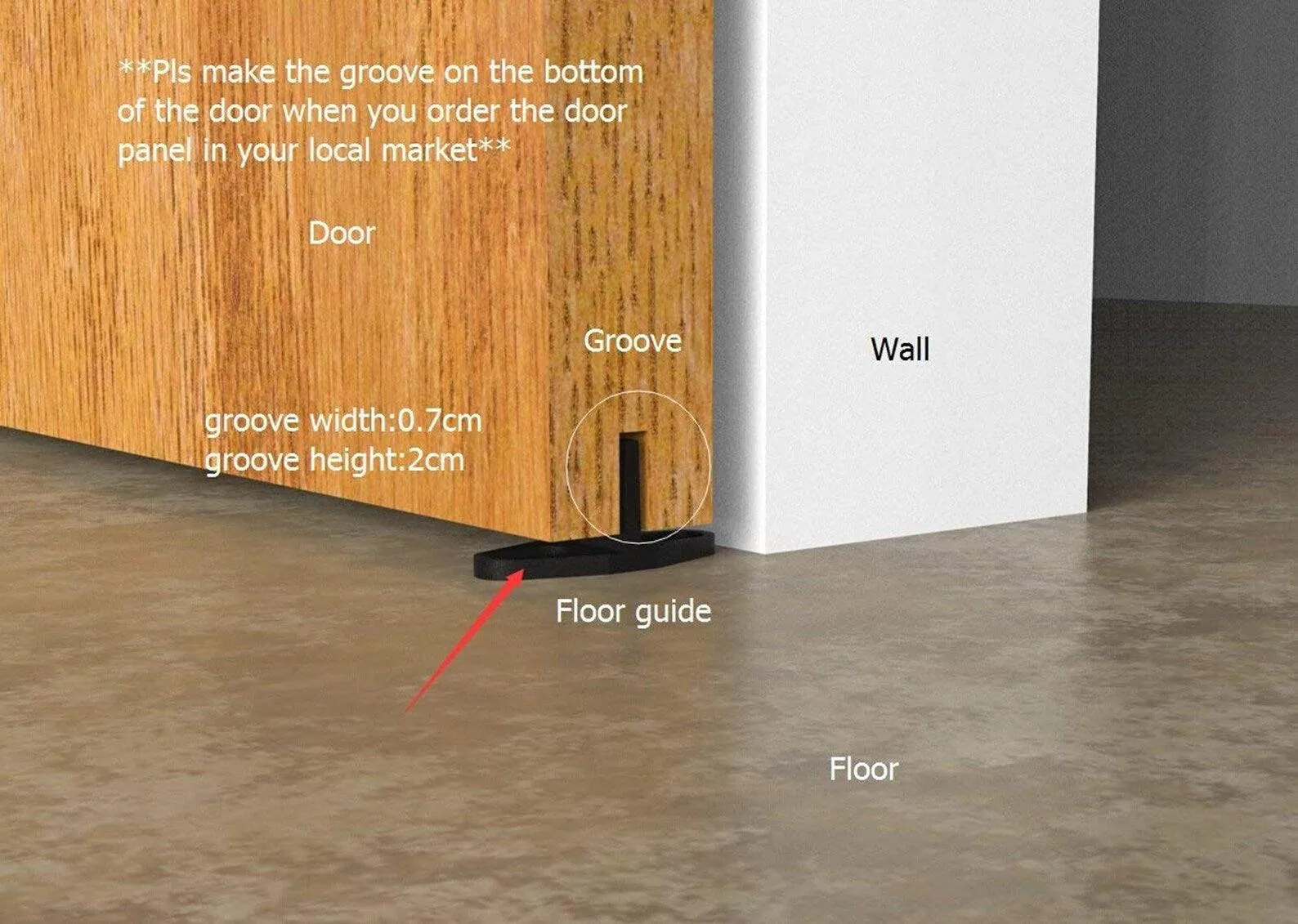

The door panel needs to have a groove cut for the floor guide, with a height of 1 inch and a width of 3/10 inch.

The operation of the soft close mechanism is available on both sides of the door.

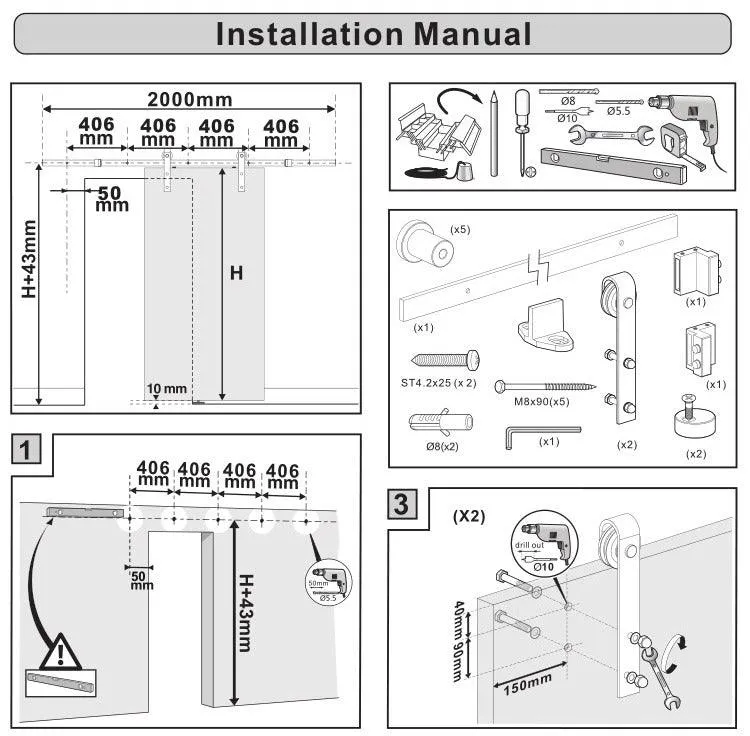

The track comes pre-drilled with holes spaced 16 inches apart. Additionally, small holes are pre-drilled at both ends of the track to accommodate the track connector for making a longer track.

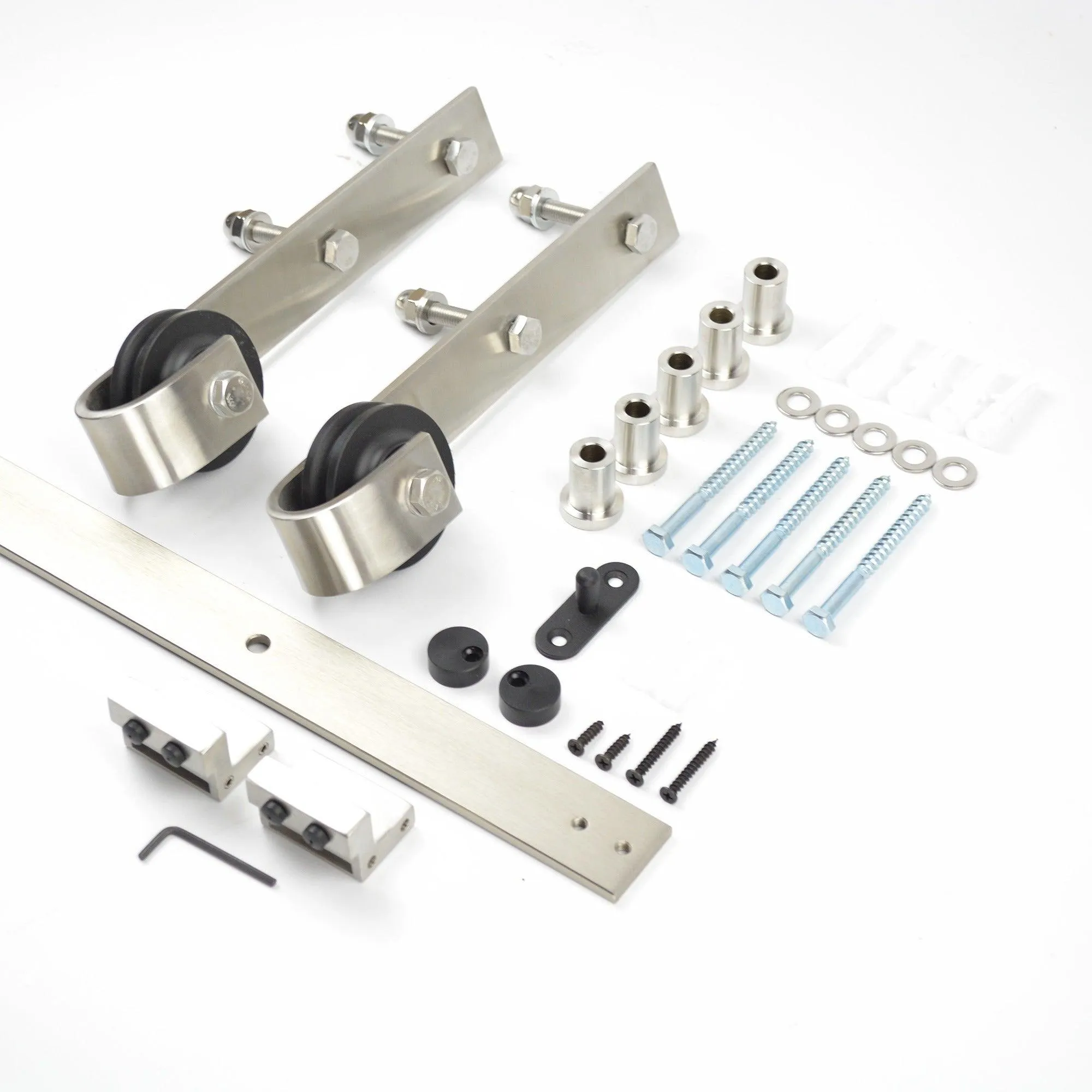

Included Products:

5ft Soft Close Kit:
- Rollers: 2pcs
- Stoppers: 2pcs
- Track&Wall Spacer: 4pcs
- POM Floor Guide: 1pcs
- Anti-pad: 2pcs
- 5FT track: 1pcs
- Soft close mechanism: 2pcs (pre-installed on the track, between the first and second holes on the track)
- T trigger: 2pcs

6ft Soft Close Kit:
- Rollers: 2pcs
- Stoppers: 2pcs
- Track&Wall Spacer: 5pcs
- POM Floor Guide: 1pcs
- Anti-pad: 2pcs
- 6FT track: 1pcs
- Soft close mechanism: 2pcs (pre-installed on the track, between the first and second holes on the track)
- T trigger: 2pcs

6.6ft Soft Close Kit:
- Rollers: 2pcs
- Stoppers: 2pcs
- Track&Wall Spacer: 5pcs
- POM Floor Guide: 1pcs
- Anti-pad: 2pcs
- 6.6FT track: 1pcs
- Soft close mechanism: 2pcs (pre-installed on the track, between the first and second holes on the track)
- T trigger: 2pcs

8ft Soft Close Kit:
- Rollers: 2pcs
- Stoppers: 2pcs
- Track&Wall Spacer: 6pcs
- POM Floor Guide: 1pcs
- Anti-pad: 2pcs
- 8FT track: 1pcs
- Soft close mechanism: 2pcs (pre-installed on the track, between the first and second holes on the track)
- T trigger: 2pcs

Please ensure that you select the appropriate kit size for your specific door panel and requirements to ensure optimal performance.
