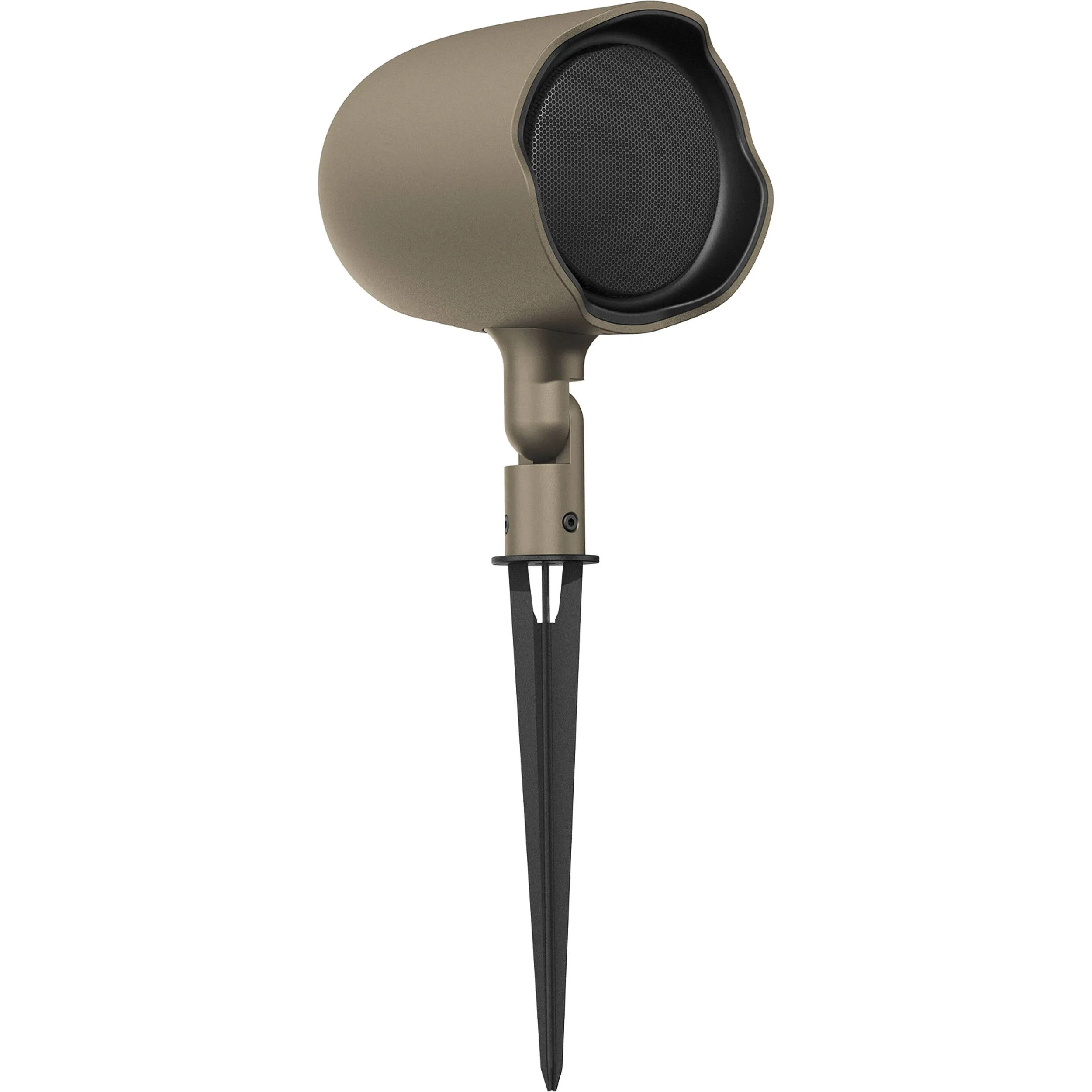

When you need superior sound quality in a fixed, outdoor environment, look no further than the tan GSF3 Ground-Stake Landscape Loudspeaker from JBL, a two-way, coaxial, full-range outdoor loudspeaker with a 60W RMS power handling and a 15W multitap transformer that supports 8-ohm or 70/100V operation in distributed audio systems. With an IP66 weather rating for dust and water protection, a MIL-810STD protection from humidity, salt spray, temperature, and UV, and a clever drip hole below the drivers for water drainage, you never have to worry about leaving this speakers in virtually any outdoor environment.
The GSF3 provides wide coverage of your environment, with 90° conical coverage, and can be aimed at desired targets via an adjustable hinge for ideal coverage. This discrete speaker is perfect for theme and public parks, shopping malls, sports venues, hospitality venues, and much more thanks to its robust build quality and high-fidelity sound. This loudspeaker includes a ground stake for easy mounting into the ground, and an L-bracket for convenient wall mounting.
Features
- For Malls, Parks, and Sports Venues
- Discrete Outdoor Loudspeaker
- Two-Way Coaxial: 0.8" Tweeter, 3" Woofer
- 60W Continuous Program, 120W Peak
- 8-Ohm or 70/100V Operation
- IP66 Rating for Dust and Water Ingress
- Bottom Drip Hole for Drainage
- Wide Coverage, Full-Range Sound
- Can Be Aimed via Adjustable Hinge
- Includes Ground Stake and L-Bracket
Specifications
| Active/Passive |
Passive
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
2-Way
|
| Power Handling |
60 W RMS
120 W Peak
|
| Recommended Amplifier Power |
15 to 120 W Peak
|
| Constant Voltage / Transformer Taps |
70 V:
15 / 7.5 / 3.8 W or 8 Ohms Bypass
100 V:
15 / 7.5 W or 8 Ohms Bypass
|
| Impedance |
6.5 to 8 Ohms
|
| Transformer Wattage |
15 W
|
| Enclosure Type |
Sealed
|
Drivers
| HF Driver |
1x 0.8" / 2 cm Titanium Dome Tweeter
|
| LF Driver |
1x 3" / 7.6 cm Polypropylene Woofer
|
| LF Voice Coil |
1" / 2.5 cm
|
| Magnet |
HF:
Neodymium
|
Performance
| Frequency Range |
74 Hz to 20 kHz -10 dB
|
| Frequency Response |
120 Hz to 15 kHz ±3 dB
|
| Maximum SPL |
103 dB (Peak)
97 dB (Continuous)
|
| Sensitivity |
82 dB
|
| Coverage Angle |
90° (Conical)
|
| Directivity |
7.9 (Directivity/Q Factor)
9 dB (Directivity Index)
|
| Recommended High-Pass Filter |
80 Hz, 24 dB/Octave
|
| Maximum Input Voltage |
13.5 V RMS
27 V Peak
|
| Transformer Insertion Loss |
<1 dB
|
Connectivity
| Inputs/Outputs |
1x Wire Lead Speaker Input
|
| Maximum Wire Gauge |
18 AWG
|
Environmental
| Environmental Protection |
Dust/Water-Resistant (IP66 / MIL-STD-810)
|
Physical
| Color |
Tan/Beige
|
| Mounting |
1x Bracket Point (Bottom)
|
| Construction Material |
ABS, Aluminum, Polycarbonate
|
| Dimensions |
6.6 x 5.2" / 16.8 x 13.2 cm
|
| Weight |
3.8 lb / 1.7 kg
|
Packaging Info
| Package Weight |
9.81 lb
|
| Box Dimensions (LxWxH) |
13.8 x 11.1 x 9.7"
|
