When you need superior sound quality in a fixed outdoor environment, look no further than the hunter green GSF6 Ground-Stake Landscape Loudspeaker from JBL, a two-way, coaxial, full-range outdoor loudspeaker with 100W RMS power handling and a 30W multitap transformer that supports 8-ohm or 70/100V operation in distributed audio systems. With an IP66 rating for weather and dust and strong jets of water protection, a MIL-STD-810 protection from humidity, salt spray, temperature, and UV, and a clever drip hole below the drivers for water drainage, you never have to worry about leaving these speakers in virtually any outdoor environment.

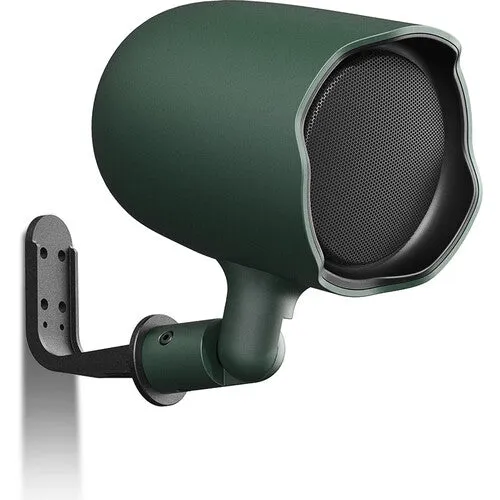

The GSF6 provides wide coverage of sound in your environment with 70° conical coverage, and it can be aimed at desired targets via an adjustable hinge for ideal coverage. This discrete speaker is perfect for theme and public parks, shopping malls, sports venues, hospitality venues, and much more thanks to its robust build quality and high-fidelity sound. This loudspeaker includes a ground stake for easy mounting into the ground, and an L-bracket for convenient wall mounting.
Features
- For Malls, Parks, and Sports Venues
- Discrete Outdoor Loudspeaker
- Two-Way Coaxial: 1" Tweeter, 6.5" Woofer
- 100W Continuous Program, 200W Peak
- 8-Ohm or 70/100V Operation
- IP66 Rating for Dust and Water Ingress
- Bottom Drip Hole for Drainage
- Wide Coverage, Full-Range Sound
- Can be Aimed via Adjustable Hinge

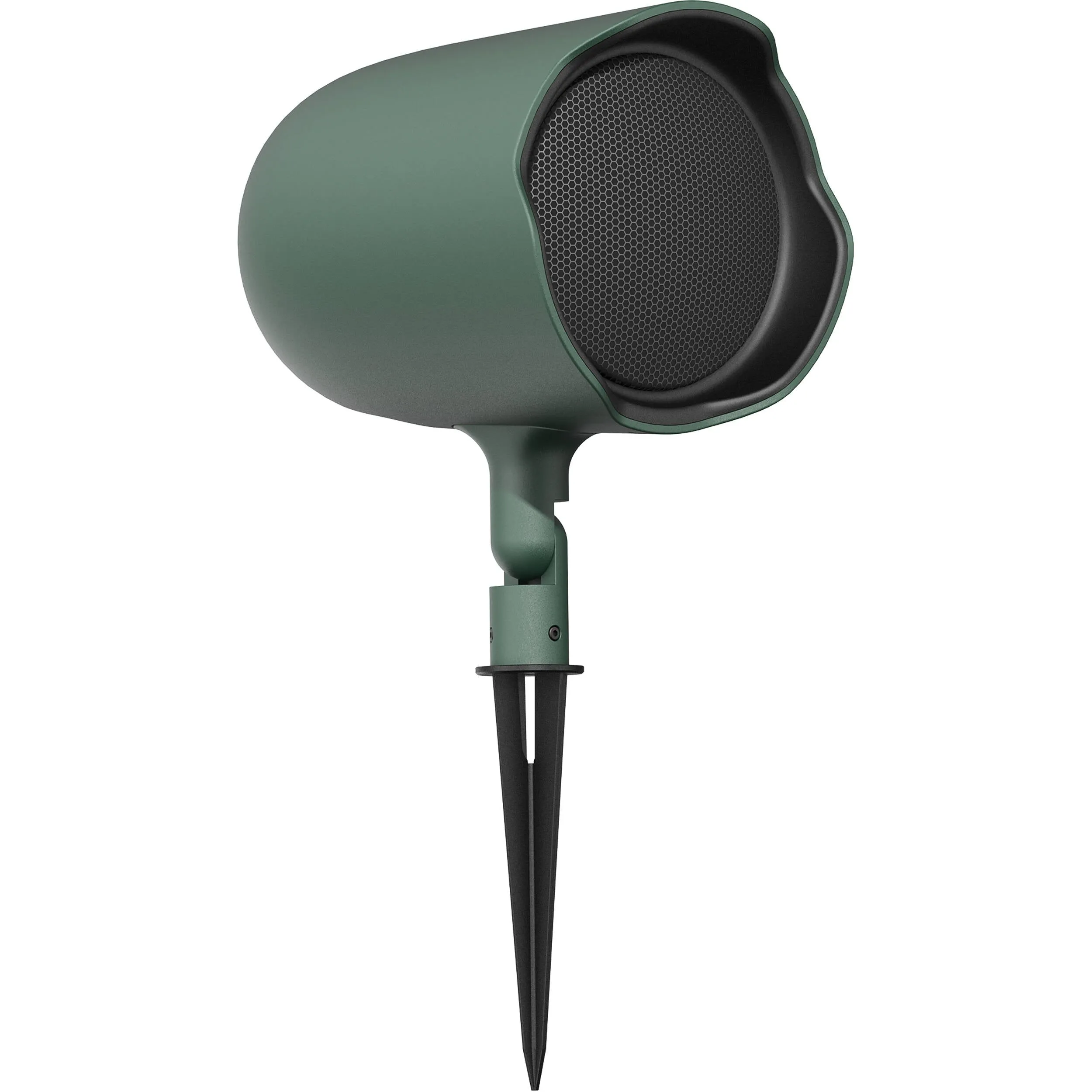

- Includes Ground Stake and L-Bracket
Specifications
| Active/Passive |
Passive
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
2-Way
|
| Power Handling |
100 W RMS
200 W Peak
|
| Recommended Amplifier Power |
30 to 200 W Peak
|
| Constant Voltage / Transformer Taps |
70 V:
30 / 15 / 7.5 W or 8 Ohms Bypass
100 V:
30 / 15 W or 8 Ohms Bypass
|
| Impedance |
7.2 to 8 Ohms
|
| Transformer Wattage |
30 W
|
| Enclosure Type |
Sealed
|
Drivers
| HF Driver |
1x 1" / 2.5 cm Titanium Dome Tweeter
|
| LF Driver |
1x 6.5" / 16.5 cm Polypropylene Woofer
|
| LF Voice Coil |
1" / 2.5 cm
|
| Magnet |
HF:
Neodymium
|
Performance
| Frequency Range |
65 Hz to 20 kHz -10 dB
|
| Frequency Response |
90 Hz to 18 kHz ±3 dB
|
| Maximum SPL |
110 dB (Peak)
|
| Sensitivity |
87 dB (Average)
|
| Coverage Angle |
70° (Conical)
|
| Directivity |
10.3 (Directivity/Q Factor)
10.2 dB (Directivity Index)
|
| Recommended High-Pass Filter |
65 Hz, 24 dB/Octave
|
| Maximum Input Voltage |
18 V RMS
36 V Peak
|
| Transformer Insertion Loss |
<1 dB
|
Connectivity
| Inputs/Outputs |
1x Wire Lead Speaker Input
|
| Maximum Wire Gauge |
18 AWG
|
Environmental
| Environmental Protection |
Dust/Humidity/Water-Resistant (IP66 / MIL-STD-810)
|
Physical
| Color |
Green
|
| Mounting |
1x Bracket Point (Bottom)
|
| Construction Material |
ABS, Aluminum, Polycarbonate
|
| Dimensions |
11.6 x 8.6" / 29.5 x 21.8 cm
|
| Weight |
7.7 lb / 3.5 kg
|
Packaging Info
| Package Weight |
20.155 lb
|
| Box Dimensions (LxWxH) |
21 x 15.3 x 13.7"
|
