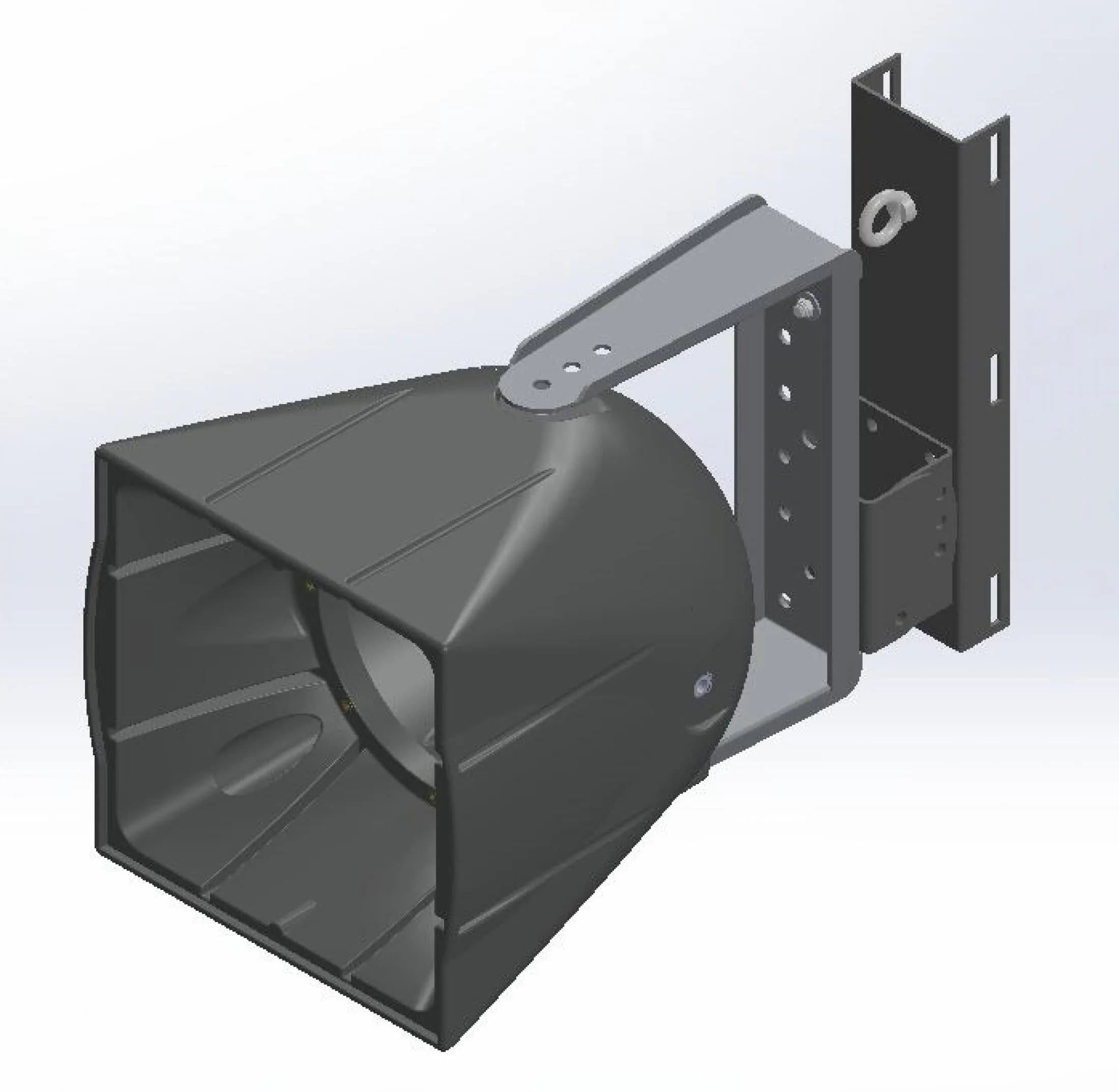

The One Systems® SP.PMT is a deluxe pole mount bracket with tilt capability designed for use with One Systems models ONE.SP6, ONE.SP8, ONE.SP12D and ONE.SP12T loudspeakers.

The SP.PMT is made of structural steel with a dual-layer, zinc-rich powder coating that will provide long useful life and safety. The SP.PMT and its associated speakers should only be used for outdoor installations for inland, noncoastal environments (more than 10 miles / 16 km from oceans).

The SP.PMT may be used on round or square poles. For square / rectangular poles, the minimum flat dimension must be 3.75 inches (95.25 mm) at the speaker’s mounting height and for round poles, the minimum diameter is 4 inches (101.6 mm) at the speaker’s mounting height. One Systems cannot imply the suitability of specific diameters or poles. The suitability of each pole must be verified by the pole manufacturer or a structural engineer.

The SP.PMT provides a “tilt” angle range from vertical (0 degrees) to a maximum down tilt of 35 degrees. The tilt angle is adjustable in 13.3-degree increments.

To attach the bracket and speaker assembly to the mounting pole, One Systems recommends Band-It® stainless steel banding and buckles (not sold by or available through One Systems).

There are three slots in the sides of the SP.PMT bracket. It is recommended that two single-wraps per slot are used to secure the bracket to the mounting pole.

The U-Bracket shipped with each ONE.SP model is used to attach each speaker to the SP.PMT bracket.
