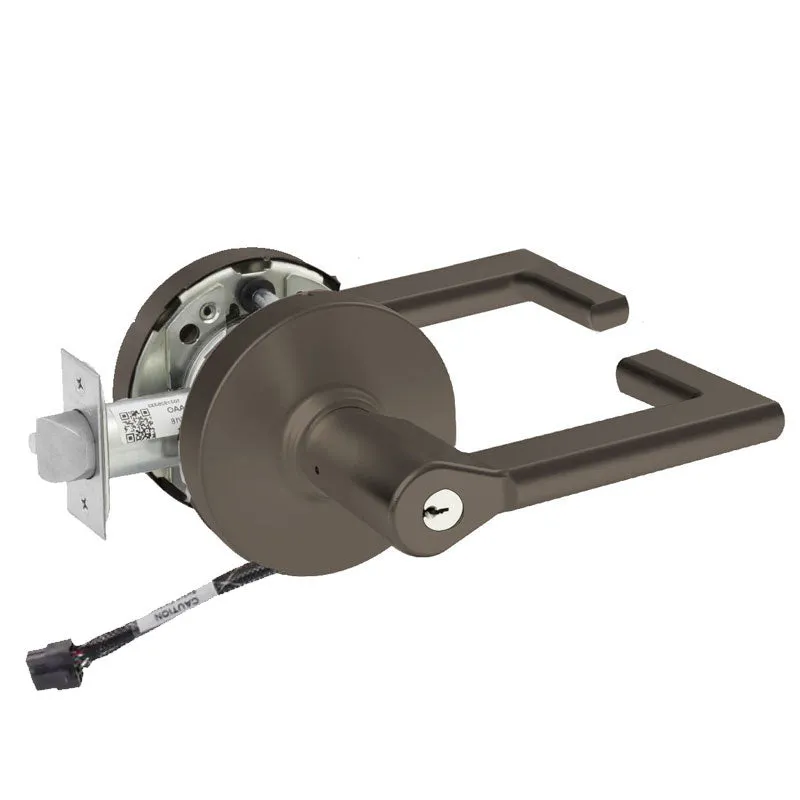

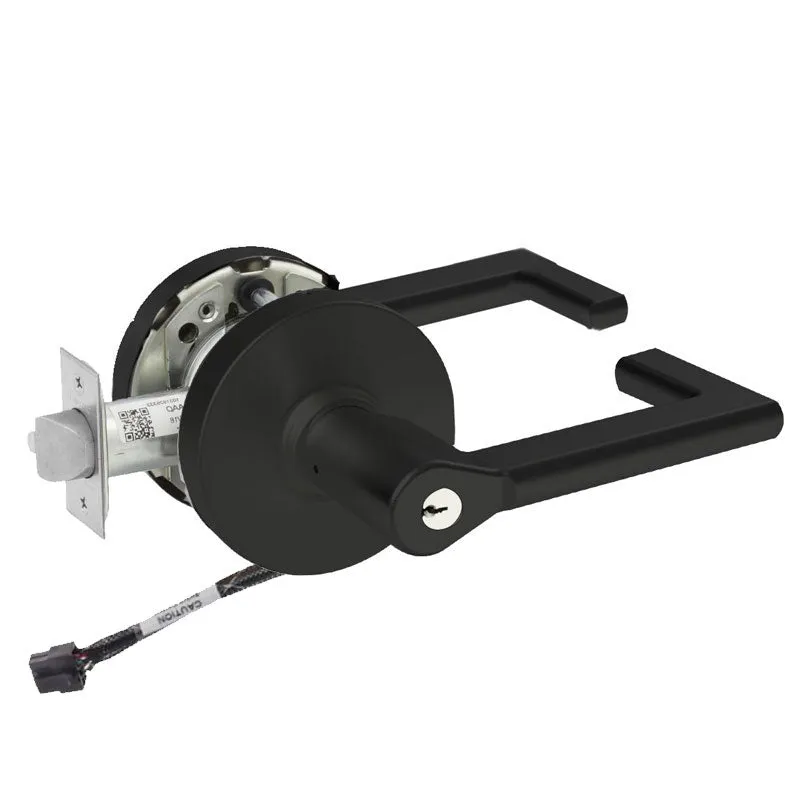

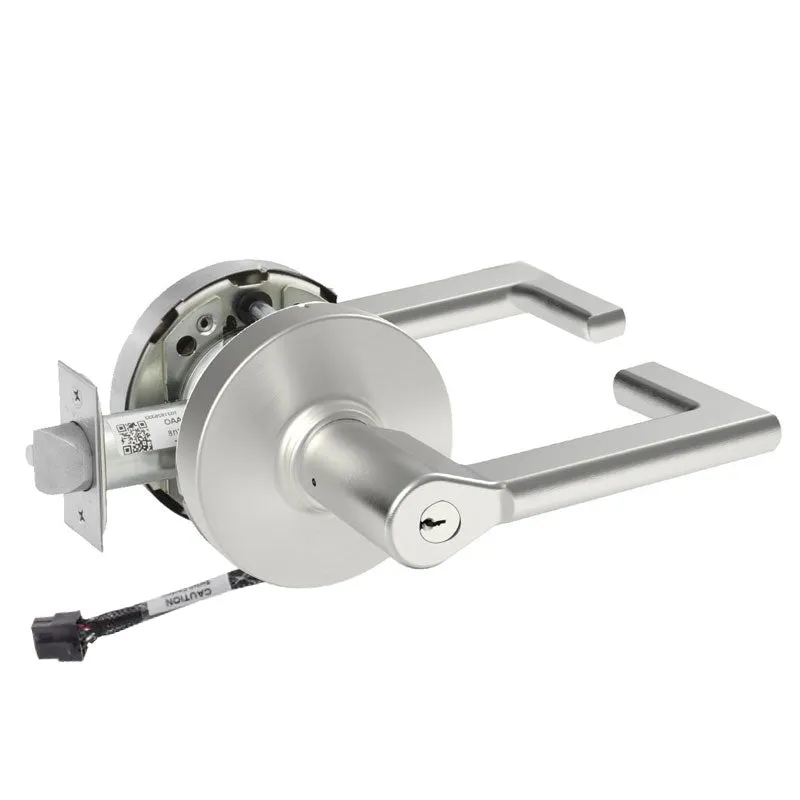

Sargent RX-10XG71-LND Cylindrical Electromechanical Lever Lockset, Fail Secure, Request to Exit, LA Keyway Keyed Random, [2] Keys, Field Rversible, L Rose, B Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1
The Sargent RX-10XG71-LND from Sargent's 10 Line locks is a Grade 1, Electromechanical Cylindrical Lever Lock with a Fail Secure - Power Off Locks Lever Function, and Request to Exit Feature. This lock comes standard with an LA Keyway, Keyed Randomly, 2 change keys per lock, an L Rose, an ND Lever, and works with12VDC or 24VDC voltage. Sargent RX-10XG71-LND Locks are field-selectable, fail-safe, and fail-secure.
Sargent RX-10XG71-LND Features:
- 71 - Fail Secure Function
- Fail Secure - Power Off Unlocks Lever
- Inside lever is always free
- Latchbolt retracted by key outside when locked electrically
- Guardbolt deadlocks latch bolt - Backset-2-3/4"
- Strike- 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4" curved lip
RX- Monitoring of Inside Lever
- Patent Pending design
- Non-Contact Switch
- Bidirectional lever rotation
- Non-handed design
- Internal switch offers N/O & N/C
- Modular wire harness with ElectroLynx ® 8-pin connector
10X-Line Bored Lever Locks
The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.
Features
- Compatible with several security key systems (Degree, Signature, KESO, etc.)
- Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
- Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
- Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
- Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
- Innovative push/turn button design prevents damage from door stops and walls
- 26 mechanical functions offered
- Available in 14 finishes with multiple lever designs
- Optional Microshield ® antimicrobial coating available
- Lockbody design supports all cylinder formats - from fixed to interchangeable core
- Provides maximum resistance to vandalism and other malicious attacks
- Certified above & beyond testing to withstand high volume traffic
- Complements the look of any design style
- Minimizes inventory stocking requirements
- Simplifies installation in new and retrofit applications
- Integrates with new or existing facility key systems
Product Specs
|
Manufacturer |
Sargent |
|
Grade |
Grade 1 |
|
Origin |
USA |
|
Unit of Measure |
Each |
|
Base Material |
Brass or Bronze |
|
BAA Qualified |
Yes |
|
Limited Warranty |
7 Years |
|
Fire Rated |
3 Hours {A} |
Technical Specs
| Function |
71-Electromechanical Fail Secure
|
| Rose/Escutcheon Design | L - Rose |
| Lever | ND Lever |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Key(s) | Yes |
| Number of Keys | 2 |
| Hand | Non Handed |
| Door Thickness | 1-3/4" to 2" |
| Latch Number | 10-3192 |
| Latch Type | Dead Latch (Guarded) |
| Latch Backset Dim | 2-3/4" |
| Lock Face Size | 2-1/4" X 1-1/8" |
| Bolt Projection | 1/2" |
| Strike Number | 808 |
| Strike Type | ASA |
| Strike Height | 4-7/8" |
| Strike Width | 1-1/4" |
| Screws | Combination |
| Power | Hard Wired |
| Operating Voltage | 12VDC |
| Amp Draw | 500mA |
| Switch Type | RX |
| Product Type | Electric Cylindrical Lock |
