Strengths and benefits
- FastFix saw blade changing for adaptation to the working material
- Twin-column guide for accurate cuts
- Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine
- Precision angle transfer via bevel and dual-line laser
- Compact, lightweight design for convenient transportation
- Safety brake
Main applications
- Trimming skirting boards and cornices up to 120 mm in height - no calculations
- Cutting boards and panels up to 305 x 88 mm
- Trimming crown mouldings up to 168 mm in their original wall position
- Trimming square timber and beams up to 88 mm thick

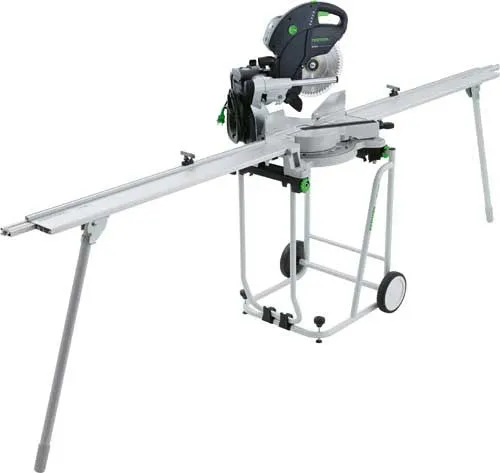

- Underframe facilitates and supports KAPEX applications
- Convenient transport on building and inst. sites thanks to KAPEX underframe
- KAPEX underframe makes simple folding in for transport possible
Items Included
- operation tool, adjustable stop, telescopic slide-out scale, fold-out pedestal and carry case, HW universal saw blade W60, workpiece clamp, underframe, bevel, KS 120 EB, in a carton
Technical Details
- weight 21,5 kg
- Power consumption 1600 W
- Connection ?? d/e 27/36 mm
- Saw blade diameter 260 mm
- Cutting depth at 45?ø/90?ø 215 x 88 mm
- Idle engine speed 1400-3400 min???
- Dimensions (W x D x H) 713 x 500 x 470 mm
- Cutting depth 90?ø/90?ø 305 x 88 mm
- Cutting depth 50?ø/90?ø (left) 196 x 88 mm
- Cutting depth 45?ø/45?ø (left) 215 x 55 mm
- Special cutting depth 90?ø/90?ø 60 x 120 mm
- Special cut. depth 45?ø/90?ø (left) 40 x 120 mm
- Special cutting depth 45?ø/90?ø 20 x 120 mm
- Crown moulding diagonal cut at 90?ø/90?ø 168 mm
- Cutting depth 45?ø/45?ø (right) 215 x 35 mm
- Cutting depth 60?ø/90?ø (right) 152 x 88 mm
- Crown moulding dia. cut 45?ø/90?ø 168 mm
- Mitre angle 50/60 ?ø
- Inclination angle 47/47 ?ø
- Work height 900 mm
Commercial Information
- Net weight 0,000 kg
- Gross weight 0,000 kg
- Country of origin DE
- PU 1
- SU 1
Industry
Wood, Painter
Quantity In Pack
1
