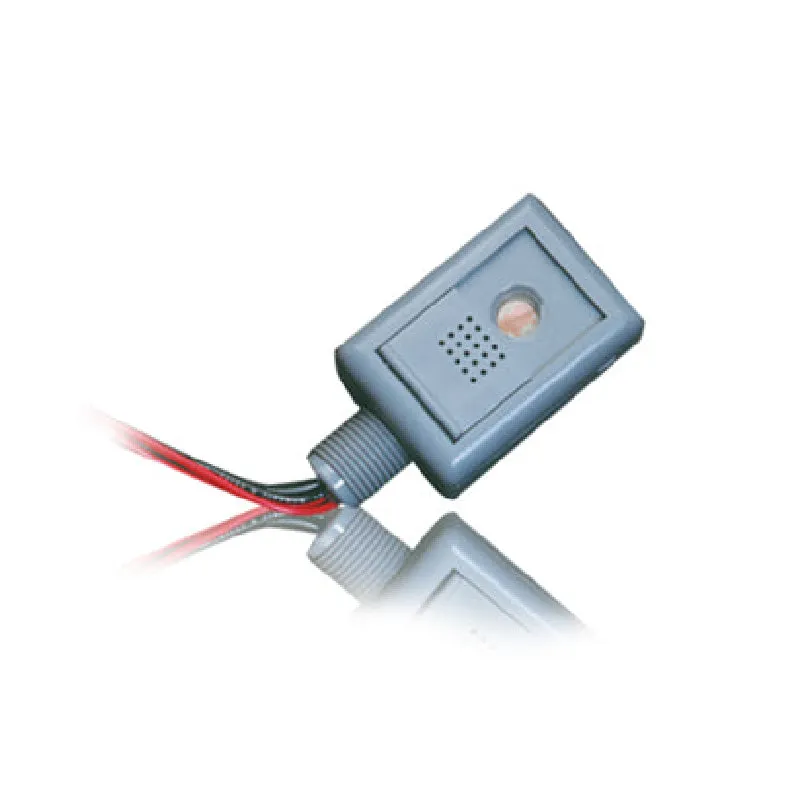

The EM is a low voltage photocell used for controlling exterior lighting. It works with Wattstopper power packs and lighting control panels (Lighting Integrator and LP series panels) by signalling a change in light levels to the panel.
Features
- Typical Applications: Control exterior lighting
- Connection Type: Normally Open
- IR Range On Axis: 1 - 15 footcandle
- Response Time: 8 seconds
- Voltage: 24 VAC
- Low voltage photocell automatically turns lighting on and off
- Mounts on building exterior or roof
- Raintight gray plastic enclosure
- Compatible with all Wattstopper lighting control panels and power packs
- Simple to wire and install
- Adjustable aperture window for varying ON setpoint
Dimensions
- Width: 2"
- Height: 1.5"
- Depth: 3.5"
