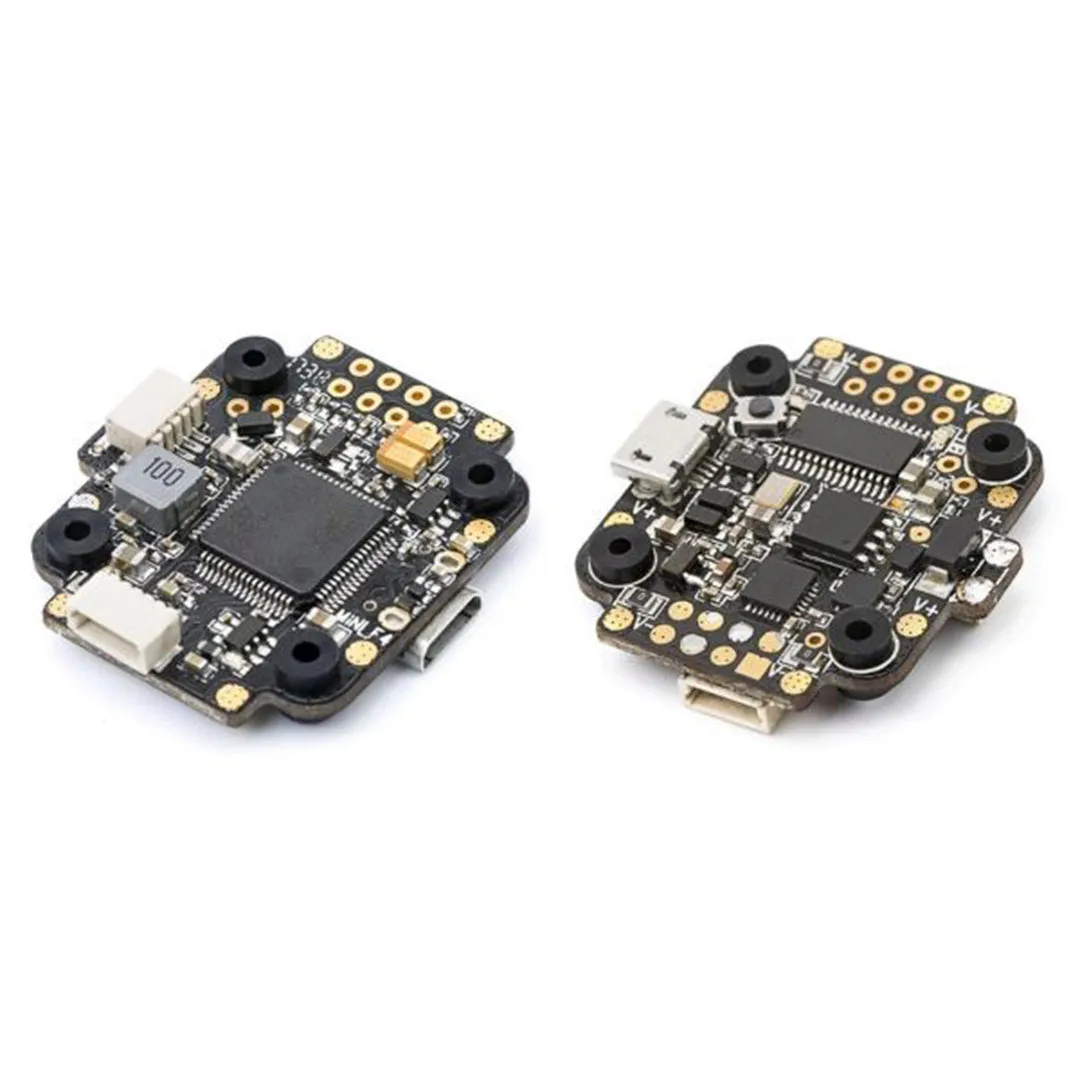

DYS MINI F4

DYS F4 mini Flight Control uses the OMNIBUS F4 firmware and can easily run at 8KHz. This AIO (all-in-one) flight controller has integrated OSD and Current Sensor. This single board is your F4 flight controller, your power distribution board, and OSD all in one package. The integrated current sensor can monitor the real-time power consumption and the OSD is fully configurable from the Betaflight GUI.

Features :

• High performance F4 (STM32F405) Processor

• MPU 6000 gyro

• Firmware target: Omnibus F4

• 3OZ copper PCB to carry all your amps!

• Max. Current: 80A

• 5V 2A BEC output

• Conformal coated for the British weather with exposed pads for easy soldering

• Compatible with all ESCs, as well as DYS 4-in-1 ESC without soldering

• Integrated OSD configured through the Betaflight Configurator

• Integrated current meter to monitor the real-time power consumption

• Adjust the PIDs by OSD using your radio

• Adjust the VTX settings (IRC Tramp and TBS Unify)

• 2-4s Lipo support

• Net weight: 6g (excluding wire)

• Size: L30 * W27mm.

• Standard 20*20mm mounting holes
